When designing a pot still for distillation, one of the most important decisions is how to heat the still. Traditionally, pot stills are heated using steam jackets or internal coils, but modern distillers are increasingly turning to external reboilers as a more efficient, controllable, and serviceable solution.
In this post, we’ll explore why an external reboiler is often the preferred heating method, and how this design improves performance, safety, and flexibility in both craft and commercial distillation systems.
Limitations of Steam Jackets and Internal Coils
Steam jackets and internal coils have been used for generations, but each comes with challenges.
A steam jacket surrounds the pot with an outer shell where steam is circulated to heat the liquid inside. While simple and effective, the curved vessel surface limits the available heating area, which can make it difficult to achieve high vapor rates efficiently.
Internal steam coils are another common method of heating pot stills, but they can interfere with agitation and make cleaning more difficult—especially when processing heavy or grain-in mashes. Also, the coil occupies space within the pot, requiring the design of the pot to be larger to accommodate for effective batch capacity.
Why Choose an External Reboiler?

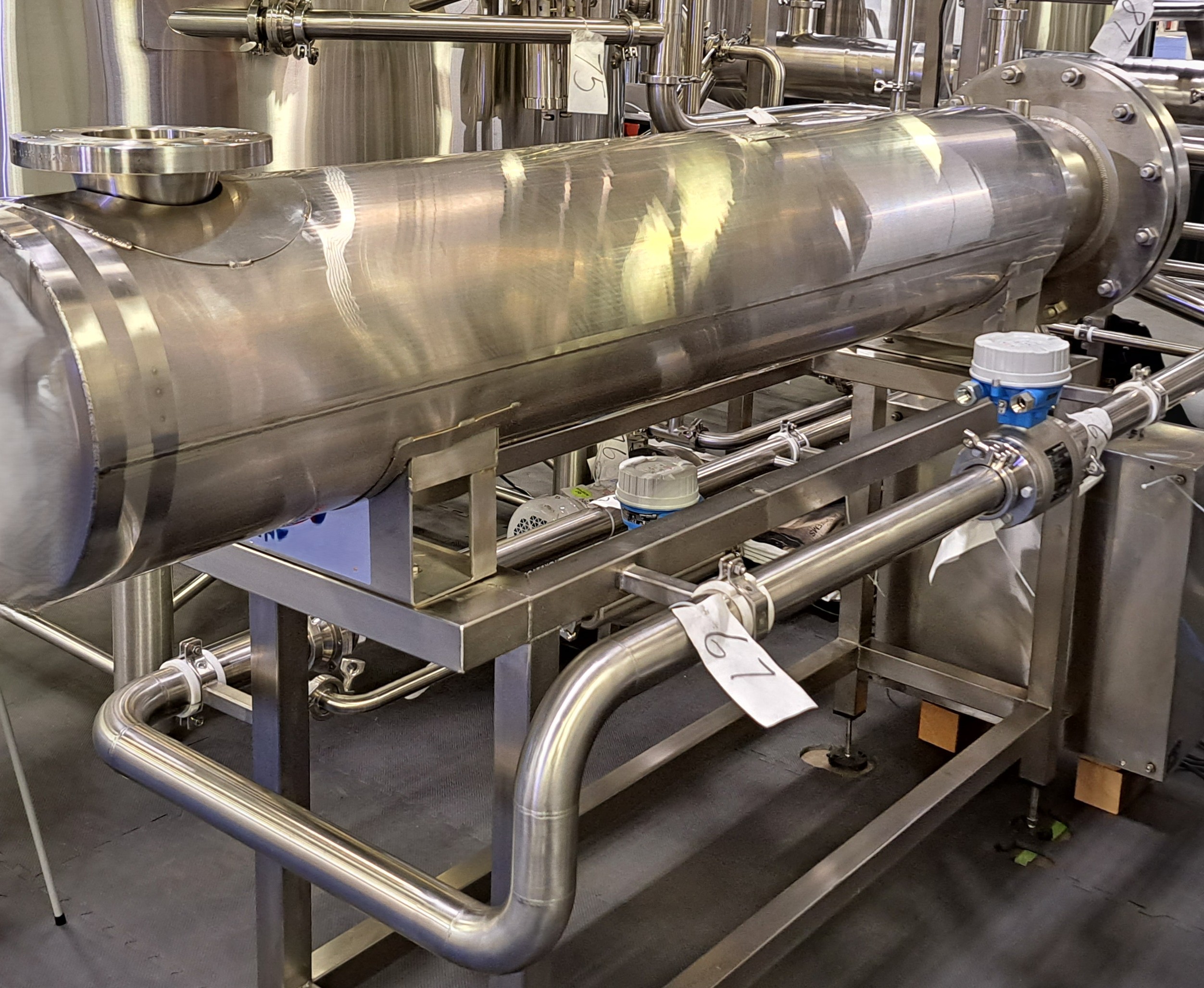

An external reboiler transfers heat to the pot still contents through an external heat exchanger, typically a shell-and-tube design, using a recirculating loop between the still and the reboiler. The liquid from the pot circulates through the reboiler where it is heated by steam, then returns to the still. This setup offers several distinct advantages:
1. Improved Heat Transfer Efficiency
Because the reboiler provides a large, controlled heat exchange surface, it delivers faster and more uniform heating compared to jacketed systems. The flow through the heat exchanger maintains turbulence, improving thermal performance and minimizing localized overheating.
2. Easier Cleaning and Maintenance
With the heat exchanger located outside the still, both the reboiler and the pot are fully accessible for cleaning and inspection. Tubes can be mechanically or chemically cleaned without entering the vessel—significantly reducing downtime between batches.
3. Enhanced Process Control
External reboilers allow for precise steam control, ensuring stable temperature regulation throughout distillation. Operators can fine-tune vapor production rates for consistent spirit quality and improved energy efficiency.
Features of a Well-Designed Pot Still Reboiler System
A high-quality reboiler system includes:
- Shell-and-tube construction with optimized heat transfer surface area.
- Steam control valve and condensate return system for efficient thermal regulation.
- Recirculation pump designed for appropriate flow rates to maintain uniform heating.
- Instrumentation for temperature and pressure monitoring to ensure process safety and consistency.
- Optional bypass or isolation valves for simplified cleaning and maintenance.
Conclusion
For distillers seeking higher performance, easier maintenance, and greater control, an external reboiler is an excellent choice for pot still heating. It eliminates the drawbacks of traditional jackets and coils, while delivering superior heat transfer and process flexibility.
At Specific, our reboiler-equipped stills are engineered for precision, durability, and efficiency—helping distillers produce consistent, high-quality spirits with every batch.
